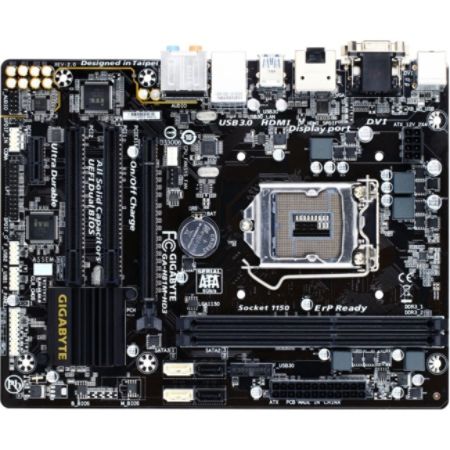

Gigabyte Ultra Durable 4 Plus GA-H81M-HD3 Desktop Motherboard - Intel H81 Chipset - Socket H3 LGA-1150 Item # 533338
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
533338
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Gigabyte Ultra Durable 4 Plus debuts on Gigabyte 8 series motherboard, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.4K resolution is the technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. Gigabyte 8 series motherboard provides native 4K support with integrated Intel HD graphics via HDMI or DisplayPort.
Product Details
| Item # | 533338 |
| Manufacturer # | VR8149 |
| Number of SATA Interfaces | 4 |
| Number of DisplayPort Outputs | 1 |
| Number of PS/2 Ports | 1 |
| Hardware Features | DualBIOS, Q-Flash, Intel Extreme Memory Profile (XMP) support, On/Off Charge, One Port One Fuse, GIGABYTE LAN Optimizer, ESD Protection, 4K Ultra HD ready, Ultra Durable 4 Plus, Clear CMOS Button |
| Power Supply Supported | ATX12V |
| DisplayPort | Yes |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz |
| Product Series | 8 |
| S/PDIF | Yes |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7 |
| Number of Network (RJ-45) Ports | 1 |
| Number of DVI Outputs | 1 |
| BIOS Type | AMI |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 2 x USB 3.0 - header ¦ 1 x SPDIF in - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x parallel - header |
| Graphics Controller Manufacturer | Intel |
| Onboard Parallel Header | Yes |
| Product Line | Ultra Durable 4 Plus |
| Audio Line In | Yes |
| Storage Interfaces | SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 device(s) ¦ SATA-300 - connector(s): 2 x 7pin Serial ATA - 2 device(s) |
| Number of PCI Express x16 Slots | 1 |
| Total Processor Supported | 1 |
| Total Number of PCI Express Slots | 2 |
| Graphics Memory Accessibility | Shared |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz |
| VGA | Yes |
| Max Processors Qty | 1 |
| brand name | Gigabyte |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage |
| Audio Channels | 7.1 |
| Number of USB 2.0 Ports | 2 |
| PS/2 Port | Yes |
| DVI | Yes |
| Memory Form Factor | DIMM |
| Processor Socket | LGA1150 Socket |
| Chipset Model | H81 |
| Sound Controller Manufacturer | Realtek |
| Onboard Video | CPU Dependent Video |
| PCI Express Standard | PCI Express 2.0 |
| Number of PCI Slots | 2 |
| Total Number of Onboard USB Ports | 6 |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| HDMI | Yes |
| Processor Supported | Core i7; Core i5; Core i3; Pentium; Celeron; Xeon |
| BIOS Features | DMI 2.0 support, ACPI 2.0a support, SMBIOS 2.6 support, UEFI BIOS |
| Total Number of USB Ports | 6 |
| Number of PCI Express x1 Slots | 1 |
| Onboard Audio Header | Yes |
| width | 9.6 in |
| Number of Memory Slots | 2 |
| Sound Controller Model | ALC892 |
| depth | 7.5 in |
| Product Name | Ultra Durable 4 Plus 8 Series GA-H81M-HD3 (rev. 2.0) Desktop Motherboard |
| Audio Codec | Realtek ALC892 |
| manufacturer | GIGABYTE Technology, Inc |
| Number of S/PDIF Out Ports | 1 |
| Audio Line Out | Yes |
| Max Size | 16 GB |
| Maximum Memory | 16 GB |
| Supported RAM Integrity Check | Non-ECC |
| controller type | Serial ATA/600; Serial ATA/300 |
| Number of Onboard USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | Yes |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600 |
| Graphics Memory Technology | DDR3 SDRAM |
| Number of Total Expansion Slots | 4 |
| Chipset Manufacturer | Intel |
| Memory Technology | DDR3 SDRAM |
| form factor | Micro ATX |
| Graphics Controller Memory | 1 GB |
| Number of HDMI Outputs | 1 |
| Number of Onboard USB 3.0 Ports | 2 |
| warranty length | 3-year limited |
| Onboard S/PDIF Header | Yes |
| model name | GA-H81M-HD3 |
| Show More ▾ |
